VVDI Prog can support to read IMMO Benz W203 1J35D/1J74Y/2J74Y/3J74Y/4J74Y,their wiring diagrams are the same one.If you do not want to do wiring, VVDI PROG BENZ EZS Adapter includes W203 one, it will help you do easier.
Recently,we recevied feedback that after read 2002 Mercedes C240 W203 successfully,use VVDI MB Tool load EIS data,but vvdi mb tool got error:file is not right .
Solution:
Please check the wiring diagram,check the EIS is same with pic one ,and all wiring are done well, the conenction are the same,read the data again,right one will be about 4kb.
From the customer feedback,the wiring is not completed yet,and after do all wiring,customers read new data,the problem is solved.
VVDI PROG Wiring Diagram Pic:
The following pic is not completed one.
So we need emphasis:VVDI PROG Most important is making a good wires connection just like wiring diagram.
Edit by http://www.xhorsevvdi.com/ :VVDI MB Tool and VVDI Prog 2002 Mercedes C240 W203 Feedback
Top 3 Reasons to get VVDI2 Full Version: 1. VVDI2 support vehicles For VW, AUDI,BMW and Porsche, much more powerful than VVDI 2.Include all functions for VVDI, VVDI 5th immo and BMW Multi Tool 3.Latest Version: V1.1.9,Update Online Free Lifetime
2018年8月31日星期五
How to use VVDI Prog Repair BMW FRM3 XEQ384 BMW E-series E71?
V4.7.3 VVDI Prog supports to restore the original eeprom from Dflash to repair BMW E-series FRM(BMW Footwell Modue) . You can see from previous VVDI Prog update info,it adds FRM-E-SERIES-XEQ384,FRM-F-SERIES-XET512 optionsin <8-OTHER>->.Our blog will display about VVDI Prog repair BMW FRM3 XEQ384 of car model BMW E-series E71.
1.VVDI Prog Read D-Flash.
Choose detailed "MCU>>Brand>>Chip" in VVDI Prog software:MCU->Motorola-MC9S12->9S12XEQ384 unsecured
Check connection diagram,remove the FRM from your car and do wiring like diagram display.
If vvdi prog software shows Partition information error,please select the partition size manually,please set "partition size EEE:0 sector,DFlash:128 sectors(32K)",press OK to continue.

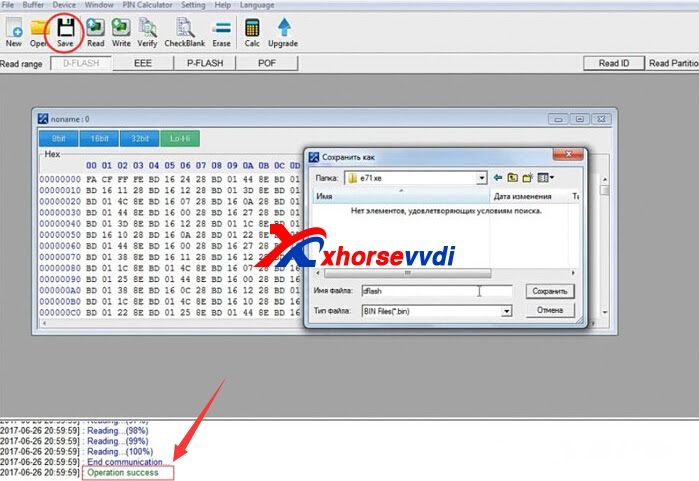

Read process and after read successfully,save the data.
2.Convert Dflash to EEPROM.
Open Dflash to EEE for FRM3 Software,upload Dflash data and save EEE data.
(You can also use free software online to transfer FRM3 D-Flash to EEPROM from the website link: http://tlvps.tomvanleeuwen.nl/frm/)
The following two pics display Dflash to EEE for FRM3 in vvdi prog software way.
3.EEPROM Writing.
Choose "Write Partion",write EEPROM partition to 16 sectors(4K),DFLASH:0 sector.
Open the eeprom data you converterted in step 2.
Select "Write" in VVDI Prog menu.
Write successfully.Reset FRM success.
If more VVDI Prog reviews,please contact us www.xhorsevvdi.com
1.VVDI Prog Read D-Flash.
Choose detailed "MCU>>Brand>>Chip" in VVDI Prog software:MCU->Motorola-MC9S12->9S12XEQ384 unsecured
Check connection diagram,remove the FRM from your car and do wiring like diagram display.
If vvdi prog software shows Partition information error,please select the partition size manually,please set "partition size EEE:0 sector,DFlash:128 sectors(32K)",press OK to continue.
Read process and after read successfully,save the data.
2.Convert Dflash to EEPROM.
Open Dflash to EEE for FRM3 Software,upload Dflash data and save EEE data.
(You can also use free software online to transfer FRM3 D-Flash to EEPROM from the website link: http://tlvps.tomvanleeuwen.nl/frm/)
The following two pics display Dflash to EEE for FRM3 in vvdi prog software way.
3.EEPROM Writing.
Choose "Write Partion",write EEPROM partition to 16 sectors(4K),DFLASH:0 sector.
Open the eeprom data you converterted in step 2.
Select "Write" in VVDI Prog menu.
Write successfully.Reset FRM success.
If more VVDI Prog reviews,please contact us www.xhorsevvdi.com
loading..
2018年8月21日星期二
VVDI MB Tool Program Benz W202 W208 W210 All Key Lost
VVDI MB Tool newest version add new function: Support calculate password for W202/W208/W210(KLine) EIS. Here is some simple steps about VVDI MB Tool Program Benz W202 W208 W210 All Key Lost.
W202/W208/W210(KLine) EIS use with VVDI MB Tool Power Adapter Connection Diagram:
1.Read key password with VVDI MB Tool software.
Connection like the diagram pic.12V power supply.
Read key password.And do like the password calculation steps.
Steps you can check in the software.
Get key password successfully.
2.In software "EIS Tools" Read EIS eeprom dump file.
Paste key password,and save the EIS data.
3.Prepare key file.
Load EIS file.
Save file.
4.Write new key.
Click Read/write key in software.
Load key file,then write.
5.Test new key.
Edit by http://www.xhorsevvdi.com/ :VVDI MB Tool Program Benz W202 W208 W210 All Key Lost
W202/W208/W210(KLine) EIS use with VVDI MB Tool Power Adapter Connection Diagram:
1.Read key password with VVDI MB Tool software.
Connection like the diagram pic.12V power supply.
Read key password.And do like the password calculation steps.
Steps you can check in the software.
Get key password successfully.
2.In software "EIS Tools" Read EIS eeprom dump file.
Paste key password,and save the EIS data.
3.Prepare key file.
Load EIS file.
Save file.
4.Write new key.
Click Read/write key in software.
Load key file,then write.
5.Test new key.
Edit by http://www.xhorsevvdi.com/ :VVDI MB Tool Program Benz W202 W208 W210 All Key Lost
loading..
2018年8月20日星期一
Condor xc mini reviews and Feedback
Xhorse Condor XC-MINI,which is the most powerful key cutting machine,xhorseVVDI.com sells both key cutting machine and XC-MINI plus VVDI MB BGA Tool bundle package or XC-MINI plus VVDI2 package,bundle package can save you more.
1.Condor XC-MINI Key Cutting Machine Reviews
Original: Condor xc mini reviews and Feedback
1.Condor XC-MINI Key Cutting Machine Reviews
1.Cut New GM, Coverlet, HU100, PSA Peugeot, Citroen VAT2 key, XC-MINI makes job easier
2.Do Toyota TOY43 all key lost, save you a lot of time
3.Cut Suzuki, Mazda (key tooth in ignition lock more than door lock) all key lost, simply by enter the key code
4.Do Hyundai, Kia, Peugeot, and Citroen all key lost, directly program keys
5.HU101 works fine, HU92 works fine.
6.HU66 OK, have to do two passes on each side to get the key to work, same with hu100.
7.Fix the problem that other key cutting machines cut domestic Honda key not accurately
8.Clio 2 series with m1 clamp all is ok perfect..
9.Panda mj year 2005 cut key ok .
10.Condor mini better than X6 key cutter!Xhorse condor xc-mini key machine is a far superior machine to the x6 key cutter, the x6 is a starter machine for very light use and build quality is poor in comparison , i had an x6 to play with for a few months , i wouldn’t buy one having gone hands on with it , condor will last longer and be more reliable of the 2 , its at least being supported and updated which is a big plus and is a far superior build quality to the x6 which at best is a hobby or starter machine .
11.Why I choose Condor xc-mini not sec-e9?
“Xhorse XC-mini is already the development of the company Xhorse, with the patented technology of moving the cutter in 2 planes z and y. Thus, it is one of the most compact and lightest (body and most parts of aluminum) machines on the market, with a higher cutting speed than SEC-E9. It also has a 7 inch touch screen, it already has its own firmware, which has many tips for keyers (including photo of lock larvae with the indication of a fur code).
11.Why I choose Condor xc-mini not sec-e9?
“Xhorse XC-mini is already the development of the company Xhorse, with the patented technology of moving the cutter in 2 planes z and y. Thus, it is one of the most compact and lightest (body and most parts of aluminum) machines on the market, with a higher cutting speed than SEC-E9. It also has a 7 inch touch screen, it already has its own firmware, which has many tips for keyers (including photo of lock larvae with the indication of a fur code).
Updates are more frequent than SEC-E9. And what I like best is my gripe. Vice M1 for the English profile and some vertical (included) and vice M2 with 4 exchangeable sides ABC and D for specific vertical keys (also included in the scope of delivery).
Cons, less versatile, suitable only for car keys. More expensive, more raw software on the maps of some keys, tk. The project is younger and it was not based on stolen developments.
Pros, it's an opportunity to buy it cheaper than SEC-E9 when buying a VVDI BGA MB tool + getting 1 token per day for free (and this is one Mercedes a day for the addition). 150USD licensed instacode for 1 year”.
"I personally use the condor. sec 9 has a great price point but I believe it requires additional clamps. Lots of locksmiths in my area use it.
A few notes about the condor however,
UPDATE IT.
UPDATE IT.
For the love of all Mitsubishi and motorcycle keys,
UPDATE IT.
Edit:
Oh, and keep an extra probe and 2 cutters, the thing likes to break em.
Don't overdue calibration, it seriously only needs it about every 2 months"
Cons, less versatile, suitable only for car keys. More expensive, more raw software on the maps of some keys, tk. The project is younger and it was not based on stolen developments.
Pros, it's an opportunity to buy it cheaper than SEC-E9 when buying a VVDI BGA MB tool + getting 1 token per day for free (and this is one Mercedes a day for the addition). 150USD licensed instacode for 1 year”.
"I personally use the condor. sec 9 has a great price point but I believe it requires additional clamps. Lots of locksmiths in my area use it.
A few notes about the condor however,
UPDATE IT.
UPDATE IT.
For the love of all Mitsubishi and motorcycle keys,
UPDATE IT.
Edit:
Oh, and keep an extra probe and 2 cutters, the thing likes to break em.
Don't overdue calibration, it seriously only needs it about every 2 months"
Condor XC-MINI V4.0.1 (2017.06.16) Update Info:
+Add universal key decode function
+Add M2-D function
+Add motor sensor testing function
*Modify probe/cutter detection
*Fix machine may crash error problem
*Fix HU49 key decode error
*Fix HU66 cutting speed issue
*Fix BW6 cutting error
*Fix TBE1 cutting error
Notes:
1.New update for both SN KM02/KM03 machines
2.New function:Main Interface-Key Duplication-Universal Type
3.Universal Type support decode/cutting parts of home & vehicle keys
4.Please keep the whole key clean and conductivity good(ensure without dust/oil)
5.For one side key(thickness of whole key usually 1.5mm or 2.00mm) please add a shim/business card under the key,ensure the whole key thickness should more than 3mm
2.Condor XC-MINI Pictures:
loading..
2018年8月19日星期日
VVDI PROG Read Renault Laguna BCM 2014 OK
VVDI Prog Original can support multi-brand car models IMMO to read eeprom dump file,like Renault,BMW,JLR,Ford.etc. Here we will take Renault Laguna BCM 2014 car model as example.
1.Start VVDI Prog software and choose IMMO Renault Laguna BCM 2010- type.
2.Check Connection Diagram.
3.Take Renault Laguna BCM 2014 IMMO Box out.
4.Do wiring like the connection diagram display.
5.After connect well,click read,and save data.
We will add more VVDI Prog feedback in our Official blog.If any questions or feedbacks,please feel free to contact us.
Edit by http://www.xhorsevvdi.com/ :VVDI PROG Read Renault Laguna BCM 2014 OK
1.Start VVDI Prog software and choose IMMO Renault Laguna BCM 2010- type.
2.Check Connection Diagram.
3.Take Renault Laguna BCM 2014 IMMO Box out.
4.Do wiring like the connection diagram display.
5.After connect well,click read,and save data.
We will add more VVDI Prog feedback in our Official blog.If any questions or feedbacks,please feel free to contact us.
Edit by http://www.xhorsevvdi.com/ :VVDI PROG Read Renault Laguna BCM 2014 OK
loading..
2018年8月17日星期五
Condor XC-MINI Key Cutting Machine Support Russian Language
Condor MINI supports multi-language,and it is OK to change to Russinal language.The one you received is default English language.If you want to change language,please send us your serial number,factory will change it for you,then update your machine.
Condor XC-MINI Language:
Portuguese/Spanish/French/Germany/Czech/Arabic/Turkish/Dutch/Polish/Bulgarian/Norway/Slovakia/Italian/English/Russian/Chinese
Condor XC-MINI Promotion:Free with M4 clamp.
Condor XC-MINI Newest Version is V5.1.5:
Please use xhorse update kit software to update your Condor mini key cutting machine.
Edit by http://www.xhorsevvdi.com/ :Condor XC-MINI Key Cutting Machine Support Russian Language
relate article:
Condor XC-MINI Key Cutting Machine Spanish Language Setting
Condor XC-MINI Language:
Portuguese/Spanish/French/Germany/Czech/Arabic/Turkish/Dutch/Polish/Bulgarian/Norway/Slovakia/Italian/English/Russian/Chinese
Condor XC-MINI Promotion:Free with M4 clamp.
Condor XC-MINI Newest Version is V5.1.5:
Please use xhorse update kit software to update your Condor mini key cutting machine.
Edit by http://www.xhorsevvdi.com/ :Condor XC-MINI Key Cutting Machine Support Russian Language
relate article:
Condor XC-MINI Key Cutting Machine Spanish Language Setting
loading..
2018年8月12日星期日
How to use Xhorse M4 clamp to cut house key with Condor mini?
Xhorse M4 clamp install with Condor mini and use to cut house key incl. single/double sided & crucifix keys.
Part 1: Install M4 Clamp
Please note: Try to put the cutter and probe on top so that they won't be broken, because the M4 clamp is higher than M1 and M2 clamps.
Insert key, you can use a sheet to withstand (following image 1)
Turn the handle forwards to fasten it
Or Firstly turn the handle backwards to release it
Insert key, you can use a sheet to help (following image 2)
Turn the handle forwards to fasten it
Part 2: Cut house key
Done.
Youtube video
https://www.youtube.com/watch?v=XC4FSgOVdiE
www.xhorsevvdi.com
Part 1: Install M4 Clamp
- Clock M4 clamp on the Condor xc-mini.
Please note: Try to put the cutter and probe on top so that they won't be broken, because the M4 clamp is higher than M1 and M2 clamps.
- Insert the key.
Insert key, you can use a sheet to withstand (following image 1)
Turn the handle forwards to fasten it
Or Firstly turn the handle backwards to release it
Insert key, you can use a sheet to help (following image 2)
Turn the handle forwards to fasten it
Part 2: Cut house key
- Click on "Key copy".
- Choose "universal profile".
- Choose the key type.
- Will tell you what clamp you can use, then you can understand what is for M1 or M4.
- Switch to M4 clamp, and choose "Key Learn".
- Cut key.
Done.
Youtube video
https://www.youtube.com/watch?v=XC4FSgOVdiE
www.xhorsevvdi.com
loading..
2018年8月10日星期五
Condor Key Machine XC-DOLPHIN VS XC-Mini
Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.
index | XC-DOLPHIN | XC-MINI |
Spindle | Mechanical shaft +60W DC motor (with a foreign model)" "Electric spindle brushless 300W, built-in angular contact bearing | Electric spindle brushless 300, built-in angular contact bearing |
Transmission mechanism | "T-shaped screw + anti-backlash nut | Ball screw |
guide | Roller guide | Cross-track |
shell | Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting. | Plastic outer casing body is formed by body alloying die casting |
Fixture | Standard fixture | Two sets of standard fixtures |
Manipulation | No touch screen, no built-in database | Quick start, with touch screen, built-in database |
Offline operation | not support | stand by |
Dedicated app | Support dedicated mobile phone APp | Support dedicated mobile APP |
Built-in battery | Not supported, optional external battery | stand by |
protecting mask | Simple protective cover | Comprehensive protection |
VVD binding | not support | stand by |
Cutting speed | 1X SPEED | 2X SPEED |
weight | <10kg | 18kg |
Warranty | 1 year | 3 years |
