How to use VVDI2 Program Audi Q5 2012 All Key Lost via OBDII?

VVDI2 inlcudes vag 4th/5th authorization,and support to program Audi A3 ,A4, A5 ,Q3,Q5.etc Here we will display how to program 2012 Audi Q5 All Keys Lost via OBDII way.

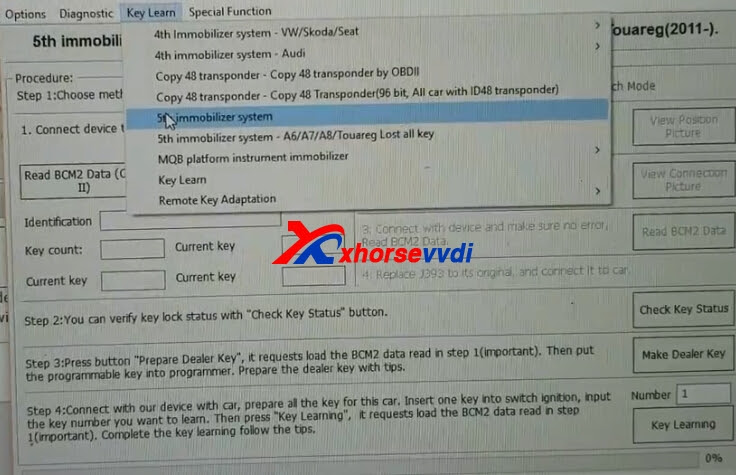

1.Start VVDI2 software and enter into VW,Choose key learn>>5th immo.

2.Choose read by OBDII,then click "Read BCM2 Data(OBDII)"
Connect device to car by OBD,start read BCM data.


Insert working key to ignition and switch on before continue.

Disconnect BCM mudule from power for 2-3 seconds and reconnect again,try to reconnecto to BCM.

4.You can verify key lock status with check key status button.
5.Press button prepare dealer key,it requests load the BCM2 data read in step1.Then put the programmable key into programmer.Prepare the dealer key with tips.
6.Connect our VVDI2 with car,prepare all the key for this car.insert one key into switch igniton,input the key number you want to learn.Then press key leraning,it requires load the BCM2 data read in step1.Complete the key learaning follow the tips.
